Public Member Functions
	__init__ (self, tree=None, descTreeFile=None, parser=None, parserOptions=None, wrapH=False, verbosity=None)

	getFullContent (self)

	setFullContent (self, content)

	copyFromOtherTree (self, other)

	copyToOtherTree (self, other)

	signal (self, file)

	popSignaled (self)

	knownFiles (self)

	isValid (self)

	tree (self)

	getDirs (self)

	getFiles (self)

	update (self, file)

	fromJson (self, filename)

	toJson (self, filename)

	scopeToFiles (self, scopePath)

	fileToScopes (self, filename)

	needsFile (self, filename, level=1)

	neededByFile (self, filename, level=1)

	callsScopes (self, scopePath, level=1)

	calledByScope (self, scopePath, level=1)

	isUnderStopScopes (self, scopePath, stopScopes, includeInterfaces=False, includeStopScopes=False)

	plotTree (self, centralNodeList, output, plotMaxUpper, plotMaxLower, kind, frame=False)

	plotCompilTreeFromFile (self, filename, output, plotMaxUpper, plotMaxLower)

	plotExecTreeFromScope (self, scopePath, output, plotMaxUpper, plotMaxLower)

	plotCompilTreeFromScope (self, scopePath, output, plotMaxUpper, plotMaxLower)

	plotExecTreeFromFile (self, filename, output, plotMaxUpper, plotMaxLower)

	findScopeInterface (self, scopePath)

Protected Member Functions
	_build (self)

	_emptyCache (self)

	_incInScope (self)

	_compilationTree (self)

	_executionTree (self)

	_analyseFile (self, file)

Static Protected Member Functions
	_recurList (node, descTreePart, level, down)

Protected Attributes
	_tree

	_descTreeFile

	_parser

	_parserOptions

	_wrapH

	_verbosity

	_signaled

	_cwd

	_scopes

	_useList

	_includeList

	_callList

	_funcList

	_cacheCompilationTree

	_cacheExecutionTree

	_cacheIncInScope

	_compilationTree

	_executionTree

Detailed Description

Class to browse the Tree

Definition at line 48 of file tree.py.

Constructor & Destructor Documentation

◆ init()

pyfortool.tree.Tree.__init__	(	self,
		tree = `None`,
		descTreeFile = `None`,
		parser = `None`,
		parserOptions = `None`,
		wrapH = `False`,
		verbosity = `None`
	)

:param tree: list of directories composing the tree or None
:param descTreeFile: filename where the description of the tree will be stored
:param parser, parserOptions, wrapH: see the PYFT class
:param verbosity: if not None, sets the verbosity level

Definition at line 52 of file tree.py.

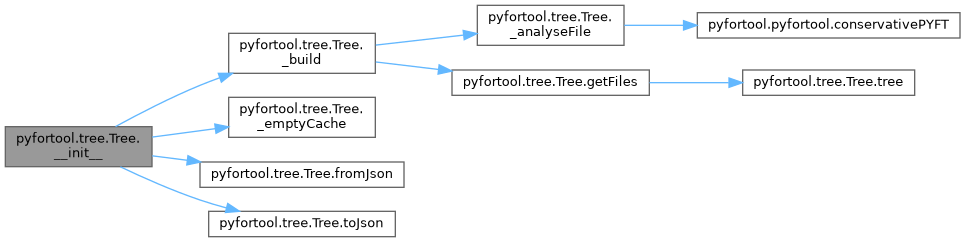

Here is the call graph for this function:

Member Function Documentation

◆ _analyseFile()

pyfortool.tree.Tree._analyseFile	(	self,
		file
	)

protected

:param file: Name of the file to explore, or PYFTscope object
:return: dict of use, include, call, function and scope list

Definition at line 440 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _build()

pyfortool.tree.Tree._build ( self )

protected

Builds the self._* variable

Definition at line 202 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _compilationTree()

pyfortool.tree.Tree._compilationTree ( self )

protected

Fill and return the self._cacheCompilationTree cached value

Definition at line 241 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _emptyCache()

pyfortool.tree.Tree._emptyCache ( self )

protected

Empties cached values

Definition at line 225 of file tree.py.

Here is the caller graph for this function:

◆ _executionTree()

pyfortool.tree.Tree._executionTree ( self )

protected

Fill and return the self._cacheCompilationTree cached value

Definition at line 317 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _incInScope()

pyfortool.tree.Tree._incInScope ( self )

protected

Fill and return the self._cacheIncInScope cached value

Definition at line 232 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _recurList()

pyfortool.tree.Tree._recurList	(	node,
		descTreePart,
		level,
		down
	)

staticprotected

:param node: initial node
:param descTreePart: 'compilation_tree' or 'execution_tree' part of a descTree object
:param level: number of levels (0 to get only the initial node, None to get all nodes)
:param down: True to get the nodes lower in the tree, False to get the upper ones
:return: list of nodes lower or upper tahn initial node (recursively)

Definition at line 578 of file tree.py.

Here is the caller graph for this function:

◆ calledByScope()

pyfortool.tree.Tree.calledByScope	(	self,
		scopePath,
		level = `1`
	)

:param scopePath: initial scope path
:param level: number of levels (0 to get only the initial scope path,
                                None to get all scopes)
:return: list of scopes that calls the initial scope path (recursively)

Definition at line 627 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ callsScopes()

pyfortool.tree.Tree.callsScopes	(	self,
		scopePath,
		level = `1`
	)

:param scopePath: initial scope path
:param level: number of levels (0 to get only the initial scope path,
                                None to get all scopes)
:return: list of scopes called by the initial scope path (recursively)

Definition at line 617 of file tree.py.

Here is the call graph for this function:

◆ copyFromOtherTree()

pyfortool.tree.Tree.copyFromOtherTree	(	self,
		other
	)

Sets self to be a copy of other

Definition at line 132 of file tree.py.

Here is the call graph for this function:

◆ copyToOtherTree()

pyfortool.tree.Tree.copyToOtherTree	(	self,
		other
	)

Sets other to be a copy of self

Definition at line 138 of file tree.py.

Here is the call graph for this function:

◆ fileToScopes()

pyfortool.tree.Tree.fileToScopes	(	self,
		filename
	)

Return the scopes contained in the file
:param filename: name of the file tn inspect
:return: list of scopes defined in the file

Definition at line 569 of file tree.py.

Here is the caller graph for this function:

◆ findScopeInterface()

pyfortool.tree.Tree.findScopeInterface	(	self,
		scopePath
	)

Return the file name containing an interface for the scope path
:param scopePath: scope path for which an interface is searched
:return: (file name, interface scope) or (None, None) if not found

Definition at line 818 of file tree.py.

◆ fromJson()

pyfortool.tree.Tree.fromJson	(	self,
		filename
	)

read from json

Definition at line 528 of file tree.py.

Here is the caller graph for this function:

◆ getDirs()

pyfortool.tree.Tree.getDirs ( self )

:param tree: list of directories composing the tree or None
:return: list of directories and subdirectories

Definition at line 176 of file tree.py.

Here is the call graph for this function:

◆ getFiles()

pyfortool.tree.Tree.getFiles ( self )

:param tree: list of directories composing the tree or None
:return: list of directories and subdirectories

Definition at line 188 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFullContent()

pyfortool.tree.Tree.getFullContent ( self )

:return: a dict containing the full content of the instance

Definition at line 90 of file tree.py.

Here is the caller graph for this function:

◆ isUnderStopScopes()

pyfortool.tree.Tree.isUnderStopScopes	(	self,
		scopePath,
		stopScopes,
		includeInterfaces = `False`,
		includeStopScopes = `False`
	)

:param scopePath: scope path to test
:param stopScopes: list of scopes
:param includeInterfaces: if True, interfaces of positive scopes are also positive
:param includeInterfaces: if True, scopes that are in stopScopes return True
:return: True if the scope path is called directly or indirectly by one of the scope
         paths listed in stopScopes

Definition at line 637 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isValid()

pyfortool.tree.Tree.isValid ( self )

Is the Tree object valid

Definition at line 166 of file tree.py.

Here is the caller graph for this function:

◆ knownFiles()

pyfortool.tree.Tree.knownFiles ( self )

:return: the list of analysez file names

Definition at line 159 of file tree.py.

◆ neededByFile()

pyfortool.tree.Tree.neededByFile	(	self,
		filename,
		level = `1`
	)

:param filename: initial file name
:param level: number of levels (0 to get only the initial file, None to get all files)
:return: list of file names that needs the initial file (recursively)

Definition at line 608 of file tree.py.

Here is the call graph for this function:

◆ needsFile()

pyfortool.tree.Tree.needsFile	(	self,
		filename,
		level = `1`
	)

:param filename: initial file name
:param level: number of levels (0 to get only the initial file, None to get all files)
:return: list of file names needed by the initial file (recursively)

Definition at line 599 of file tree.py.

Here is the call graph for this function:

◆ plotCompilTreeFromFile()

pyfortool.tree.Tree.plotCompilTreeFromFile	(	self,
		filename,
		output,
		plotMaxUpper,
		plotMaxLower
	)

Compute the compilation dependency graph
:param filename: central file
:param output: output file name (.dot or .png extension)
:param plotMaxUpper: Maximum number of elements to plot, upper than the central element
:param plotMaxLower: Maximum number of elements to plot, lower than the central element

Definition at line 772 of file tree.py.

Here is the call graph for this function:

◆ plotCompilTreeFromScope()

pyfortool.tree.Tree.plotCompilTreeFromScope	(	self,
		scopePath,
		output,
		plotMaxUpper,
		plotMaxLower
	)

Compute the compilation dependency graph
:param scopePath: central scope path
:param output: output file name (.dot or .png extension)
:param plotMaxUpper: Maximum number of elements to plot, upper than the central element
:param plotMaxLower: Maximum number of elements to plot, lower than the central element

Definition at line 794 of file tree.py.

Here is the call graph for this function:

◆ plotExecTreeFromFile()

pyfortool.tree.Tree.plotExecTreeFromFile	(	self,
		filename,
		output,
		plotMaxUpper,
		plotMaxLower
	)

Compute the execution dependency graph
:param filename: central filename
:param output: output file name (.dot or .png extension)
:param plotMaxUpper: Maximum number of elements to plot, upper than the central element
:param plotMaxLower: Maximum number of elements to plot, lower than the central element

Definition at line 806 of file tree.py.

Here is the call graph for this function:

◆ plotExecTreeFromScope()

pyfortool.tree.Tree.plotExecTreeFromScope	(	self,
		scopePath,
		output,
		plotMaxUpper,
		plotMaxLower
	)

Compute the execution dependency graph
:param scopePath: central scope path
:param output: output file name (.dot or .png extension)
:param plotMaxUpper: Maximum number of elements to plot, upper than the central element
:param plotMaxLower: Maximum number of elements to plot, lower than the central element

Definition at line 783 of file tree.py.

Here is the call graph for this function:

◆ plotTree()

pyfortool.tree.Tree.plotTree	(	self,
		centralNodeList,
		output,
		plotMaxUpper,
		plotMaxLower,
		kind,
		frame = `False`
	)

Compute a dependency graph
:param centralNodeList: file, scope path, list of files or list of scope paths
:param output: output file name (.dot or .png extension)
:param plotMaxUpper: Maximum number of elements to plot, upper than the central element
:param plotMaxLower: Maximum number of elements to plot, lower than the central element
:param kind: must be 'compilation_tree' or 'execution_tree'
:param frame: True to plot a frame grouping the central nodes

Definition at line 663 of file tree.py.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ popSignaled()

pyfortool.tree.Tree.popSignaled ( self )

:return: the list of file signaled for update and empties the list

Definition at line 151 of file tree.py.

◆ scopeToFiles()

pyfortool.tree.Tree.scopeToFiles	(	self,
		scopePath
	)

Return the name of the file defining the scope
:param scopePath: scope path to search for
:return: list file names in which scope is defined

Definition at line 560 of file tree.py.

Here is the caller graph for this function:

◆ setFullContent()

pyfortool.tree.Tree.setFullContent	(	self,
		content
	)

:param content: Fill the current instance with this dict

Definition at line 111 of file tree.py.

Here is the caller graph for this function:

◆ signal()

pyfortool.tree.Tree.signal	(	self,
		file
	)

Method used for signaling a modified file which needs to be analized
:param filename: file name or PYFTscope object

Definition at line 144 of file tree.py.

◆ toJson()

pyfortool.tree.Tree.toJson	(	self,
		filename
	)

save to json

Definition at line 540 of file tree.py.

Here is the caller graph for this function:

◆ tree()

pyfortool.tree.Tree.tree ( self )

List of directories

Definition at line 171 of file tree.py.

Here is the caller graph for this function:

◆ update()

pyfortool.tree.Tree.update	(	self,
		file
	)

Updates the object when a file has changed
:param file: name of the file (or list of names) with updated content
             or PYFTscope object

Definition at line 211 of file tree.py.

Here is the call graph for this function:

Member Data Documentation

◆ _cacheCompilationTree

pyfortool.tree.Tree._cacheCompilationTree

protected

Definition at line 80 of file tree.py.

◆ _cacheExecutionTree

pyfortool.tree.Tree._cacheExecutionTree

protected

Definition at line 81 of file tree.py.

◆ _cacheIncInScope

pyfortool.tree.Tree._cacheIncInScope

protected

Definition at line 82 of file tree.py.

◆ _callList

pyfortool.tree.Tree._callList

protected

Definition at line 78 of file tree.py.

◆ _compilationTree

pyfortool.tree.Tree._compilationTree

protected

Definition at line 605 of file tree.py.

◆ _cwd

pyfortool.tree.Tree._cwd

protected

Definition at line 73 of file tree.py.

◆ _descTreeFile

pyfortool.tree.Tree._descTreeFile

protected

Definition at line 63 of file tree.py.

◆ _executionTree

pyfortool.tree.Tree._executionTree

protected

Definition at line 624 of file tree.py.

◆ _funcList

pyfortool.tree.Tree._funcList

protected

Definition at line 79 of file tree.py.

◆ _includeList

pyfortool.tree.Tree._includeList

protected

Definition at line 77 of file tree.py.

◆ _parser

pyfortool.tree.Tree._parser

protected

Definition at line 64 of file tree.py.

◆ _parserOptions

pyfortool.tree.Tree._parserOptions

protected

Definition at line 65 of file tree.py.

◆ _scopes

pyfortool.tree.Tree._scopes

protected

Definition at line 75 of file tree.py.

◆ _signaled

pyfortool.tree.Tree._signaled

protected

Definition at line 70 of file tree.py.

◆ _tree

pyfortool.tree.Tree._tree

protected

Definition at line 62 of file tree.py.

◆ _useList

pyfortool.tree.Tree._useList

protected

Definition at line 76 of file tree.py.

◆ _verbosity

pyfortool.tree.Tree._verbosity

protected

Definition at line 67 of file tree.py.

◆ _wrapH

pyfortool.tree.Tree._wrapH

protected

Definition at line 66 of file tree.py.

The documentation for this class was generated from the following file:

/home/runner/work/pyfortool/pyfortool/src/pyfortool/tree.py

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ __init__()

Member Function Documentation

◆ _analyseFile()

◆ _build()

◆ _compilationTree()

◆ _emptyCache()

◆ _executionTree()

◆ _incInScope()

◆ _recurList()

◆ calledByScope()

◆ callsScopes()

◆ copyFromOtherTree()

◆ copyToOtherTree()

◆ fileToScopes()

◆ findScopeInterface()

◆ fromJson()

◆ getDirs()

◆ getFiles()

◆ getFullContent()

◆ isUnderStopScopes()

◆ isValid()

◆ knownFiles()

◆ neededByFile()

◆ needsFile()

◆ plotCompilTreeFromFile()

◆ plotCompilTreeFromScope()

◆ plotExecTreeFromFile()

◆ plotExecTreeFromScope()

◆ plotTree()

◆ popSignaled()

◆ scopeToFiles()

◆ setFullContent()

◆ signal()

◆ toJson()

◆ tree()

◆ update()

Member Data Documentation

◆ _cacheCompilationTree

◆ _cacheExecutionTree

◆ _cacheIncInScope

◆ _callList

◆ _compilationTree

◆ _cwd

◆ _descTreeFile

◆ _executionTree

◆ _funcList

◆ _includeList

◆ _parser

◆ _parserOptions

◆ _scopes

◆ _signaled

◆ _tree

◆ _useList

◆ _verbosity

◆ _wrapH

◆ init()
